Architeuthis Flux

Jumperless V5 rev 7

Jumperless V5 rev 7

Regular price $349.00 USD
Regular price Sale price $349.00 USD
Sale Sold out
Shipping calculated at checkout.
ALASKAN BULL WORM! PSRAM Mod Installed
Quantity


What is it?

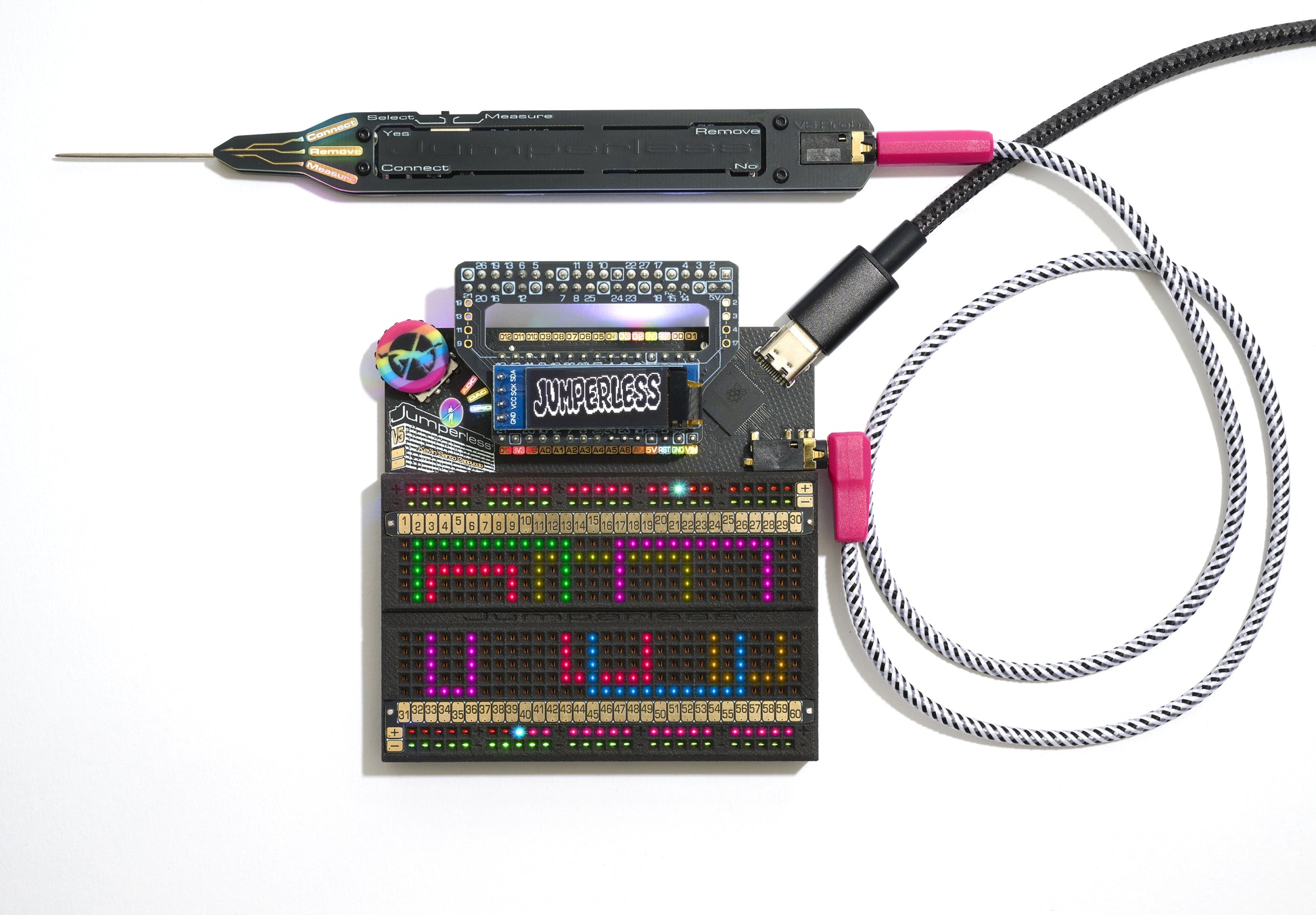

Jumperless V5 lets you prototype like a nerdy wizard who can see electricity and conjure jumpers with a magic wand. It’s an Integrated Development Environment (IDE) for hardware, with an analog-by-nature RP2350B-based dev board, a drawer full of wires, and a workbench full of test equipment (including a power supply, a multimeter, an oscilloscope, a function generator, and a logic analyzer) all crammed inside a breadboard.

You can connect any point to any other using software-defined jumpers, so the four individually programmable ±8 V power supplies; ten GPIOs; and seven management channels for voltage, current, and resistance can all be connected anywhere on the breadboard or the Arduino Nano header. RGB LEDs under each hole turn the breadboard itself into a display that provides real-time information about whatever’s happening in your circuit.


It's not just about being too lazy to plug in some jumpers. With software controlled wiring, the circuit itself is now scriptable, which opens up a world of infinite crazy new things you could never do on a regular breadboard. Have a script try out every combination of parts until it does what you want (à la evolvable hardware), automatically switch around audio effects on the fly, characterize some unknown chip with the part numbers sanded off, or don't bother with any of that and just play Doom on it.

But more likely, you'll be using it to get circuits from your brain into hardware with so little friction it feels like you're just thinking them into existence. So yeah, wizard shit.



Rev 7

This is a super minor change to the hardware in this latest batch, I added friction-fit OLED headers on the main board so you don't need to use the SBC adapter board to connect a screen. It's connected to the internal I2C bus, so if you wanted, you could use it to add new stuff to you Jumperless's hardware. The 0.91" OLED is included.



The infinite warranty applies to all of these, so if anything goes wrong or you just don't like it, repairs are always free, and a full refund for any reason is always available.

Getting Started

guide-42

Documentation Sections



Find Me On The Internet

Join the Discord for pretty much instant answers to your questions

dymo-6s


View full details
  • 5 stars: 9 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
E
Ethan

I thought I fired the thing, and you were in the discord saying it should just be a latch unplug it, top notch service for a top notch product, you’ve done an impeccable job all the way around

R
Robert Hoffman

Great fun to play with. The Discord support from designer is amazingly fast and responsive. Highly recommend 3D printing the stand for best results. The Jumperless IDE for embedded RP and Wokwi bridge for plug in Arduino Nano (not included) provide two independent ways to do scripting. Or you can play wizard with the magic wand. Try putting in a 555 chip and get it to scroll through combinations of resistors and capacitors. Adding a cheapie scope like FNIRSI DSO-TC3 is almost a sensory overload between the blinkenlights and waveforms.

A
Anonymous

This is everything I've ever wanted in a piece of electronics and I haven't even used it yet.

The packaging.
The handmade glittery stencil.
My name in proper dymo stamped pink tape.
The rainbows.

My partner thought I'd ordered fancy nail polish or something when it came through the door.

It's beautiful.

The stacked PCB probe handle.
The glittery pink ribbon cable.
So much colour.
Beautifully, meticulously designed packaging, every single millimetre of it.
I can't believe how beautiful it is.
And the design is so tight, there's so much going on.

I bought a Jumperless immediately after listening to your interview on Embedded.
I haven't even plugged anything into it yet, I've just switched it on and watched the rainbows.

I'm an electronics engineer. I work with a lot of smart people, most of them smarter than me. To be honest I don't design much these days, I mostly give people advice and do project management for PCB production and assembly.
But this... really is art. You're a genius. I'm honestly in awe. Thank you.

Also, I have questions.
Is the probe a literal sewing needle soldered onto the PCB?
How did you come up with all of this?
How do you have time to do so much?
It's hard to imagine you make much money with the open source hardware + unlimited warranty + generally too good to be true business model...?
Who _are_ you?

Anyway, this thing is incredible. What a piece of art.
I can't tell you how much I love it. I wish was working on anything as cool as this.

J
Joe Sudar

The build quality is top-notch, the visual design is interesting and engaging, and the features are great. Even reading the docs is teaching me about elements of electrical engineering design that I had not known about nor considered prior to this purchase. I am a happy customer, making progress with projects, and would recommend this to any other hobbyists, makers, or prototypers!

R
Ryan Anderson

I’ve never used fewer jumpers. A++

C
Christopher Johnson

It's great :D

R
Richard

Absolutely gorgeous, fun, extensible, and a must have for every electronics tech nerd's desk (FRONT AND CENTER!)

perfectly packaged incredibly fast shipping, A+ service!

A
Anonymous

The jumperless is heavy, sturdy, and fascinating. It's not every day you get a chance to hold a bonafide passion project. No detail is left unattended. This is not a breadboard. It's a tiny arcade.

My kids [ages 5-8] love it. Way more tangible and real than ScratchJR tile-based programming.

R
Rick Scherle

This product is obviously a labor of love. It's thoughtfully designed, with great attention to detail. And the people behind the product enthusiastically support their customers. It's been a joy to use and an inspiration to be involved with them. Like a journey back in time to when service and support mattered.
